Orbit Coil with ABS Threads Review

Our favorite coil-style hose that shrinks back better than others, and has great spray performance
gearlab tested logo
Orbit Coil with ABS Threads Review
Hero
Credit: Hale Milano
Price:  $30 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Orbit
By Hale Milano ⋅ Review Editor  ⋅  Oct 1, 2024
64
OVERALL
SCORE


RANKED
#3 of 10
  • Convenience - 35% 7.0
  • Performance - 35% 7.0
  • Construction Quality - 20% 5.5
  • Variety of Options - 10% 4.0

Our Verdict

The Orbit Coil with ABS Threads is a well-made coil-style hose that has excellent spray performance and a space-saving design. We found this hose best for watering items in a small area, given that stretching it past 25 feet hinders its ability to reshrink. It's also great for a more permanent mounting style, leaving the water connection on and controlling the flow with a valve or a nozzle, such as in a garden area or mudroom. Unfortunately, the Orbit is only available in one size option. It also tends to get hung up on its own coils and items that are in its path. Still, if you're looking for a quality coil hose, we recommend this model most.
REASONS TO BUY
Re-coils well
Great nozzle and spray performance
REASONS TO AVOID
Coils get caught on each other easily
Only one length option

Compare to Similar Products


Awards Top Pick Award
Best Coil-Style Expandable Hose
Editors' Choice Award
Best Overall

Price Check Price at AmazonCheck Price at Amazon$30 List$38 List$40 List
$19.99 at Amazon
Overall Score Sort Icon
64
67
63
61
38
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line A compact coil-style hose with great spray performance at a budget-friendly priceA great hose for those short on storage space who are looking for an economical blend of convenience and performanceWe love that this expandable hose is available in a variety of lengths, and its expansion & contraction performance is top-tierThis hose is ease to use and sprays water well, with four length optionsThis coil hose will get the job done, and the included nozzle is better than most
Rating Categories Orbit Coil with ABS... Pocket Hose Silver... AmazingForLess Expa... Xhose Pro Automan Recoil EVA
Convenience (35%)
7.0
8.0
7.0
8.0
3.0
Performance (35%)
7.0
7.0
5.0
5.0
4.0
Construction Quality (20%)
5.5
4.0
6.0
4.0
4.5
Variety of Options (10%)
4.0
6.0
9.0
7.0
4.5
Specs Orbit Coil with ABS... Pocket Hose Silver... AmazingForLess Expa... Xhose Pro Automan Recoil EVA
Available Lengths 50 feet 25, 50, 100 feet 25, 50, 75, 100, 150 feet 25, 50, 75, 100 feet 25, 50 feet
Nozzle Included Yes Yes Yes No Yes
Coupling Shape Hex and round Round Round Round Hex and round
Hose Material Rubber Not specified Plastic DAC-5 fiber EVA
Measured Weight Per Foot 0.03 lb/ft 0.04 lb/ft 0.03 lb/ft 0.05 lb/ft 0.03 lb/ft
Coupling Material Plastic Aluminum Plastic Brass Brass
Measured Expanded Length 44.3 ft 52.1 ft 47.8 ft 51.5 ft 49.4 ft
Measured Contracted Length 2.4 ft 17.1 ft 17.5 ft 16.7 ft 2.3 ft
Expansion Multiplier 18.5x 3.1x 2.7x 3.1x 21.5x
Valve Included No No Yes Yes No
PSI Limit Not stated 150 PSI Not stated 500 PSI Not stated
Available Diameters 3/8 in 3/4 in 5/8 in 5/8 in 3/8 in
Diameter Tested 3/8 in 3/4 in 5/8 in 5/8 in 3/8 in
Length Tested 50 ft 50 ft 50 ft 50 ft 50 ft
Measured Weight 1.6 lb 1.8 lb 1.4 lb 2.3 lb 1.5 lb
Expansion Type Coil Expansion Expansion Expansion Coil

Our Analysis and Test Results

Expandable hoses can fall into two categories: expansion and coil. Whereas expansion hoses rely on water pressure to expand and contract in size, a coil hose is designed like a spring; tightly wound and relying on the design to contract back into its original position. Across the board, we found that the coil-style hoses weren't as adept at shrinking back to their original size, especially when stretched to their maximum length. One of the best coil hoses we tested is the Orbit Coil with ABS Threads. This hose is one of the most resistant to over-stretching, and even after use, it recoiled to near its original size. It had great spray performance as well. If you're looking for a permanently mounted hose that can be used to water plants in close proximity without having to manually coil a large garden hose, this may be the best option for you.

Performance Comparison


orbit coil with abs threads - the orbit was easy to mount and leave out, keeping it handy for...

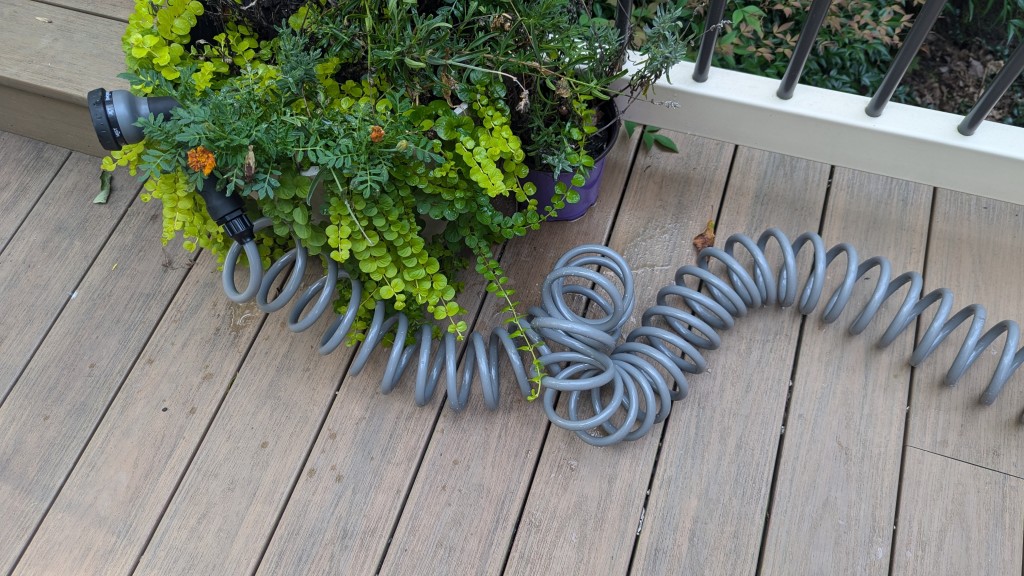

The Orbit was easy to mount and leave out, keeping it handy for quick and frequent watering's.
Credit: Hale Milano

Convenience


Coil hoses are, like most hoses, quite easy to use. We tested these the same way we tested other hoses in our lineup — evaluating how easily it expands and shrinks, how flexible or maneuverable it is, and how easy it is to screw onto a spigot or nozzle. The Orbit Coil is a very convenient and easy-to-use hose.


The Orbit re-coils or contracts back to its original size better than most other hoses we tested. At its baseline length, the hose measures 2.4 feet from tip to tip. When we stretched it out to its maximum length, 44 feet long, we felt very strong resistance. We wouldn't recommend stretching any coil-style hose to its maximum capacity. When we released the tension, the hose naturally shrunk back to around 5 feet. We heavily valued the ability to recoil well, which is one of the primary reasons for purchasing an expandable coil hose.

orbit coil with abs threads - the orbit won't shrink back to its out of the box size, but it does...
The Orbit won't shrink back to its out of the box size, but it does better than most at coiling back up to a manageable length.
Credit: Hale Milano

In use, the Orbit is relatively easy to move around with, unless you're at its maximum stretch length. The coils, as with other coil-style hoses, do tend to get caught on yard obstacles like shrubs and rocks. Connecting this hose is relatively easy. Though the threads are ABS plastic, they're still easy to screw onto spigots and nozzles.

Coil hoses are easy to use over short distances, but the coils can catch and get caught on obstacles.
Credit: Hale Milano

Performance


The performance of the Orbit Coil is one of its strong suits, and we were very impressed while using it to water plants, fill dog bowls, and wash off muddy paws.


We experienced no leaks, kinks, or flat spots while using the Orbit. Though it is possible to manually kink a coil hose, we found it unlikely to occur naturally while testing, given the springy design of these hoses. The spray performance of the Orbit is exceptionally good, especially considering the narrow hose diameter. We had excellent spray volume and pressure, and the included nozzle is impressive as well. It has eight different functions, and each worked well.

orbit coil with abs threads - excellent spray pressure and volume, along with no errant leaks from...

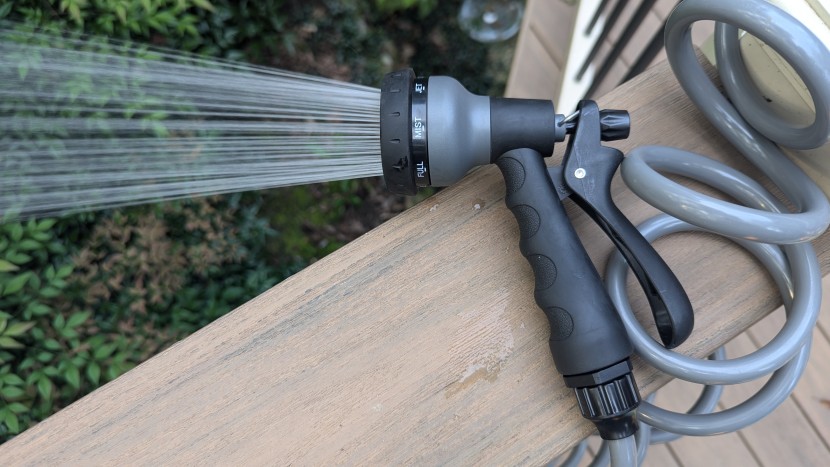

Excellent spray pressure and volume, along with no errant leaks from the Orbit significantly boosted it's performance rating.
Credit: Hale Milano

Construction Quality


After several months of testing, we didn't notice any construction or durability concerns on the Orbit. We looked for signs of day-to-day wear, impact from exposure to the elements, and themes in online reviews related to durability.


Though the connectors on the Orbit were plastic, not metal, we didn't feel as though they were likely to break. Instead, the plastic may help prevent rust damage over time. Most negative reviews we found online were minor and unrelated to quality concerns.

orbit coil with abs threads - though plastic, the abs threads on the orbit felt heavy duty.

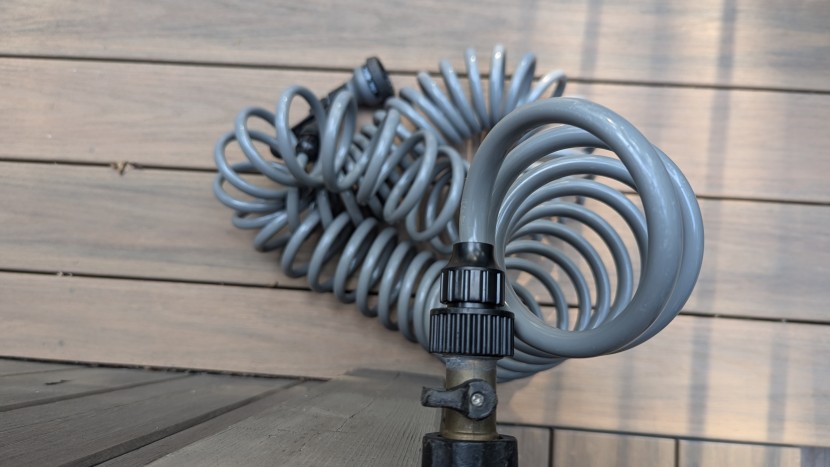

Though plastic, the ABS threads on the Orbit felt heavy duty.
Credit: Hale Milano

Variety of Options


Unfortunately, the biggest downside to the Orbit is that it is only available in one size option. Still, given the specialized use case for a coil hose, we didn't find this to be detrimental to our opinion of the hose.


The Orbit can be purchased in a 50-foot length option, and the diameter is ⅜ inch. The nozzle has eight spray modes, which is a nice variety.

The Orbit nozzle and water pressure was some of the best from any expandable hose we tested.
Credit: Hale Milano

Should You Buy the Orbit Coil with ABS Threads?


If you're looking to mount a hose in your patio, greenhouse, or deck, a coil-style hose like the Orbit Coil may be the right way to go. It would also make a great option for a mudroom or washdown hose, given its great spray performance and nozzle modes. The Orbit excels in watering items within a 20-foot radius of the spigot and shrinks nicely for easy storage. All of these features, plus the budget-friendly price, make the Orbit our top choice for coil-style hoses.

orbit coil with abs threads - the orbit is great for frequent watering's in a contained area, such...

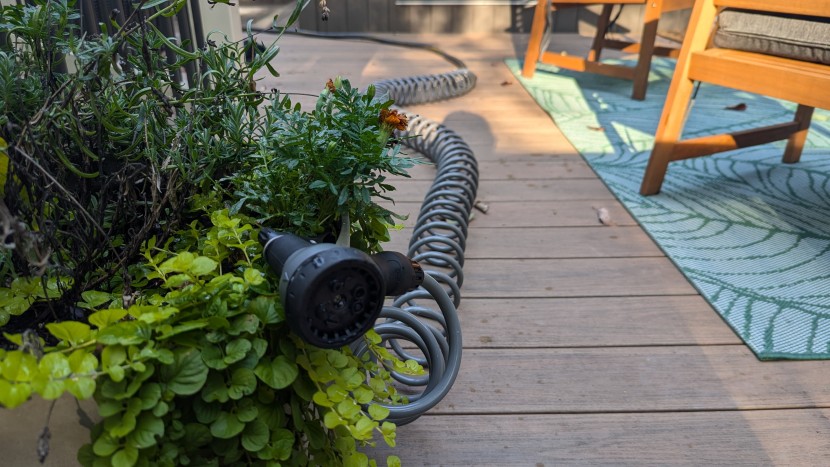

The Orbit is great for frequent watering's in a contained area, such as a deck, patio, or greenhouse, where hose length isn't required.
Credit: Hale Milano

What Other Expandable Hoses Should You Consider?


The use case for a coil hose is fairly niche, and they're ideal when you don't need to water items far from the spigot. Another coil hose to consider is the Flexon CH5850 Coil, which also coils back up close to its original size. The Flexon comes in two different length options and two different diameter options, though it doesn't stretch out to maximum length easily. If you're looking for a little extra reach but still want the benefits of an expandable hose, the expansion-style hoses in our lineup may be a better option. Hoses like the Pocket Hose Silver Bullet, Flexi Hose, and AmazingForLess Expandable are all great options for expansion-style hoses that expand and contract with water pressure versus coils.

orbit coil with abs threads - coil hoses are quick and easy to use, but not the best for large...

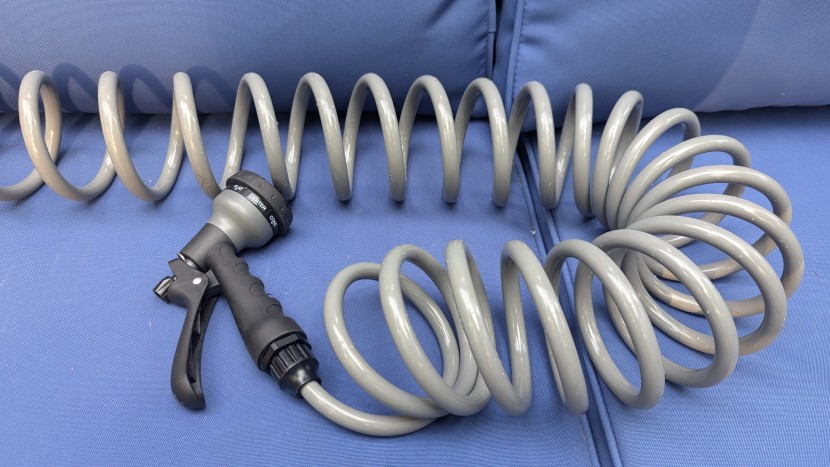

Coil hoses are quick and easy to use, but not the best for large areas or compact storage.
Credit: Hale Milano
