Dewalt Xtreme 12V 5-In-1 Drill Driver Kit DCD703F1 Review

A small but mighty 5-in-1 drill that unfortunately only comes with one battery but is great nonetheless
gearlab tested logo
Dewalt Xtreme 12V 5-In-1 Drill Driver Kit DCD703F1 Review
Credit: Abriah Wofford
Price:  $189 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   DeWalt
By Austin Palmer and Benjamin Hickok  ⋅  Sep 7, 2023
63
OVERALL
SCORE


RANKED
#12 of 23
  • Drilling - 35% 7.7
  • Driving - 35% 5.8
  • Battery Life - 20% 3.6
  • Convenience - 10% 8.2

Our Verdict

The Dewalt Xtreme 12V 5-In-1 Drill Driver Kit boasts the advantages of lighter weight and compact size while offering comparable power and performance to other higher voltage lines of drills. It is a perfect companion for working overhead or in tight spaces like attics or crawlspaces. Multiple attachments can be used in conjunction to drastically change the angles and positions of drilling, adding an incredible level of convenience when working in obstructed space. If a 12-volt system provides the level of power, performance, and battery life you need, then you'll be more than happy with this compact but capable model. See our best drill review for more info.
REASONS TO BUY
Lightweight
Compact
Swappable heads
A powerful 12V option
Quick release attachments
REASONS TO AVOID
Only one battery included
3/8 inch chuck
Attachments can be finicky

Compare to Similar Products


Awards Top Pick Award
Best Compact 5-in-1 Drill
Editors' Choice Award
Best Tool Only Drill
Editors' Choice Award
Best Drill Kit Overall
Best Buy Award
Best Bang for Your Buck
Best Buy Award
Best 12 Volt Option a Budget
Price $189 List
$137.99 at Amazon
$189 List
$168.00 at Amazon
$169 List
$105.00 at Amazon
$79 List
$59.00 at Amazon
$139 List
Check Price at Amazon
Overall Score Sort Icon
63
94
89
60
48
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line This is a compact, convenient, and very capable 12 volt drill that won't disappointThis tool delivered excellent results across the board and is a fantastic option to complement the M18 battery systemA drill driver set capable of a wide range of tasksA great budget drill for a homeowners or DIYer and has more than enough power for moderate to light-duty tasksOur favorite compact 12-volt drill when considering overall performance and price
Rating Categories Dewalt Xtreme 12V 5... Milwaukee M18 Fuel... Kobalt XTR 24-volt... Craftsman V20 1/2-I... Bosch 12V Max Drill...
Drilling (35%)
7.7
9.6
9.4
6.6
5.8
Driving (35%)
5.8
10.0
9.4
6.2
4.5
Battery Life (20%)
3.6
9.8
8.4
4.4
3.2
Convenience (10%)
8.2
6.2
6.2
6.0
5.8
Specs Dewalt Xtreme 12V 5... Milwaukee M18 Fuel... Kobalt XTR 24-volt... Craftsman V20 1/2-I... Bosch 12V Max Drill...
Five Inch Hole Saw Test 40 seconds 15 seconds 17 seconds 55 seconds 70 seconds
Lag Screw Test 4.12 in 5.00 in 5.00 in 4.37 in 3.87 in
Manufacturer Peak Torque 182 in-lbs 1,200 in-lbs 1,200 in-lbs 280 in-lbs 256 in-lbs
Measured Charge Time 55 min 25 min 85 min 58 min 85 min
Measured Weight 2.09 lbs 4.06 lbs 4.09 lbs 3.44 lbs 2.17 lbs
Measured Length 6.5 in 7 in 7 in 8.25 in 6.625 in
Measured Number of Settings 15 14 22 23 20
Manufacturer Stated RPM Low: 0 - 400
High: 0 - 1500
Low: 0 - 550
High: 0 - 2000
Low: 0 - 550
High: 0 - 2000
Low: 0 - 450
High: 0 - 1500
Low: 0 - 350
High: 0 -1300
Included Battery Pack(s) 2.0 Ah Tested with 2.0 Ah 4 Ah
Tested with 2.0 Ah (not included with kit)
1.3 Ah 2.0 Ah
Max Chuck 3/8 in 1/2 in 1/2 in 1/2 in 3/8 in
Battery Voltage 12V 18V 24V 20V 12V
Drill Model Tested DCD703 2803-20 KXDD 124B-03 CMCD700 PS31
Box Model (Kit) Tested DCD703F1 Tested tool-only, no kit KXDD 1424A-03 CMCD700C1 PS31-2A
Battery Indicator Location Battery Battery Battery Battery Drill
LED Location Above the battery Above the battery Above the battery Above the trigger Above the trigger
Included Belt Clip Yes Yes Yes No No

Our Analysis and Test Results

Performance Comparison


This model is up to the task with an impressive performance from a 12 volt drill driver.
Credit: Abriah Wofford

Drilling


We broke this metric into three real-world tests. Our first test drove deep into a solid 1 ¾ inch wooden door with a 5-inch hole. We drilled a 1-inch hole into a 2x12 using a 1-inch spade bit for our second test. This would be similar to what you might do if you want to pull electrical through framing. As a final test, we drilled through 16 gauge steel sheets with two different size spiral bits, ¼" and ½," to complete the full spectrum of testing.


The Dewalt Xtreme 12V 5-in-1 did an impressive job in our wood drilling tests, and to our test surprise, it outperformed some of the typically more powerful and capable 18 and even 20 volt models we tested. We were able to bore a hole in a 1 ¾ inch thick solid wood door with a 5-inch hole saw in 40 seconds.

dewalt xtreme 12v 5-in-1 drill driver kit dcd703f1 - the typical and convenient 1/4 inch hex shank is very compact on...

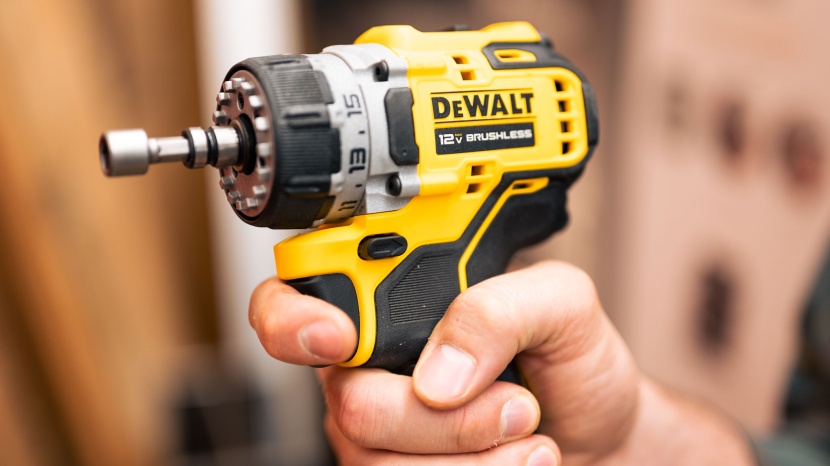

The typical and convenient 1/4 inch hex shank is very compact on this DeWalt 12v.
Credit: Abriah Wofford

We had no issues making 1-inch holes in 2x12 framing lumber in a low-speed, higher-torque setting. As you'll discover later in the battery life portion of our review, you'll have plenty of battery life to punch 1-inch holes in joists and studs to run the electrical or hoses for an extra circuit or a mini split system.

When it came down to drilling holes in 16 gauge sheet metal, the Dewalt Xtreme 12V 5-In-1 exhibited a strong performance. For reference, 16 gauge sheet steel is nearly 1/16th of an inch thick and heavier than typical roofing sheet steel, but offered less than two seconds of resistance when drilling a quarter-inch hole. We had to switch to our low speed, higher torque setting to drill a half-inch hole, as the metal deformed and bound against the bit. Still, the task was still completed in an impressive seven seconds.

Easily and quickly swap hex shank drivers and bits with this model.
Credit: Abriah Wofford

Driving


The driving metric is weighted at 35 percent of each drills overall score. We used every drill to drive five inch lag bolts through an untreated 2x4 stacked on top of an untreated 4x4, and measured how much of each lag bolt was left before a model stopped driving. We also drove 3-inch number 9 Torx T25 flat head deck screws into the same material to see if each model was capable of driving screws flush to the surface of the wood.


While not as powerful as 18 or 20 volt model's like its cousin, the DeWalt 20V Max Compact Brushless Drill/Driver DCD777C2, the Dewalt Xtreme 12V 5-In-1 offered an impressive performance. It drove the lag bolt to within ⅞" of an inch of being done before stopping and would probably continue driving on subsequent tries.

dewalt xtreme 12v 5-in-1 drill driver kit dcd703f1 - this model did well, driving an impressive number of decking screws...

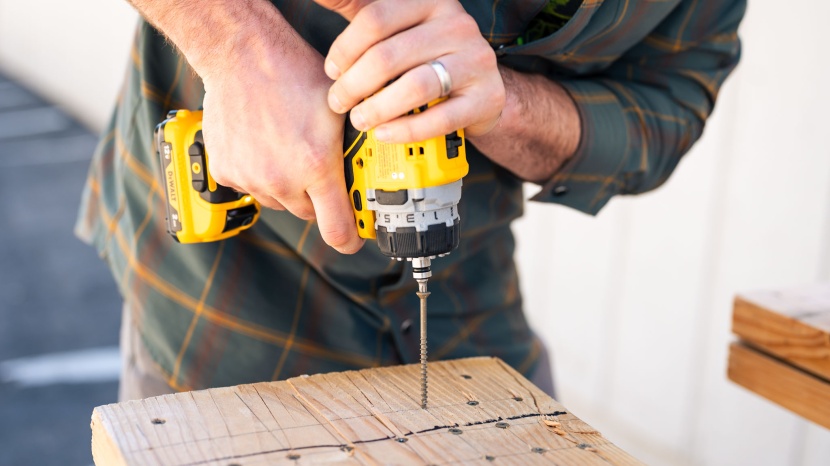

This model did well, driving an impressive number of decking screws quickly before exhausting its battery.
Credit: Abriah Wofford

It also drove 95% of the 3-inch screws used in our test completely flush with the wood and did so with more perceived ease than any other 12-volt drills we tested.

dewalt xtreme 12v 5-in-1 drill driver kit dcd703f1 - after multiple rounds of drilling and driving, this model finally...
After multiple rounds of drilling and driving, this model finally tapped out on this lag bolt.
Credit: Austin Palmer

Battery Life


Our battery life metric accounts for 20 percent of each drill's overall score. To do this, we tasked each drill with driving 16 Torx T25 flat head 9x3 deck screws into stacked 2' by 12' lumber and drilled three 1-inch holes with a spade bit. We repeated rounds of this until drills could no longer drill or drive.


The Dewalt Xtreme 12V 5-in-1 offered spectacular performance for a 12 volt system, lasting nearly four complete rounds, driving 64 screws, and drilling 10.3 1-inch holes, which our team felt was more than most would need out of a compact cordless drill, before seriously considering a larger and more powerful line of drill drivers.

The included two amp hour battery also only requires 55 minutes to fully charge, meaning you can return to your project after that time if you don't simply swap in another battery. It's worth mentioning that other 12-volt drills that our team most recently tested included two batteries, not one. Fortunately, extra 12-volt DeWalt batteries aren't too expensive.

Batteries are easy to swap on this model, but we wish it included more than one.
Credit: Abriah Wofford

Convenience


Our final test metric evaluated the convenience of each model, and contributed 10% of each drill's overall score. When it comes to convenience, angle-changing heads that can easily be swapped, tool belt clips, bit holders, work lights, simple-to-operate chucks, triggers, compactness, and battery all greatly impact convenience. The Dewalt Xtreme 12V 5-In-1 Drill is easily one of the handiest drills around and is a go-to tool for home projects where a 12-volt drill will suffice.


Battery indicator lights allow you to check a battery in the work bag or on your garage tool bench before inserting a battery into the drill. With a fresh battery, the compact but powerful Dewalt Xtreme 12V is easy to use with an ergonomic grip, trigger, and a work light that illuminates your work area at an angle that casts less shadows than other tools. For the tightest spaces, the five quick detach angle changing heads can be stacked to reach the tightest and most awkward spaces, and a quick detach hex shank makes changing bits a simple task.

Driving a screw in a hard to reach space, without having to work at an angle.
Credit: Abriah Wofford

Should You Buy the Dewalt Xtreme 12V 5-in-1 Drill?


If you prefer the lighter weight of a 12-volt drill, and the power level provides you the performance you need, as compared to larger and heavier 18 or 20-volt models, then you can't go wrong with the DeWalt Xtreme 12V 5-In-1 Drill. It offers reliable drilling and driving performance while remaining lightweight, and five attachments extend its versatility, especially in compact spaces. The battery also charges quickly, so you'll be able to handle one home project after another, and its price is approachable compared to similar models.

What Other Drill Should You Consider?


The Dewalt Xtreme 12V 5-in-1 is a great 5-in-1 drill in a 12-volt system, but for greater power and performance, you'll have to take a look at the Milwaukee M18 Fuel 1/2 Drill Driver. If your budget allows it, the Milwaukee M18 Fuel offers the overall performance of all the models we've tested and is certain to handle your next project with ease. If the top models we tested are prohibitively expensive, you might consider the more budget friendly Craftsman V20 1/2-In. Drill/Driver. Of course, if things are tight and you need a capable tool for assembling furniture or other DIY and hobbyist projects, then the Black+Decker 20V Max Drill/Driver is a good option and should sufficiently get most jobs done.
