Milwaukee M12 Fuel 2553-20 Review

Get this if you're looking for a light, small, 12-volt impact driver with great performance
gearlab tested logo
Milwaukee M12 Fuel 2553-20 Review (Considering the size of this model, we were very impressed with its performance.)
Considering the size of this model, we were very impressed with its performance.
Credit: Laura Casner
Price:  $120 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Milwaukee
By Ross Patton and Austin Palmer  ⋅  Sep 17, 2022
60
OVERALL
SCORE


RANKED
#6 of 11
  • Speed - 35% 7.0
  • Torque - 25% 6.0
  • Convenience - 20% 7.0
  • Battery - 15% 3.6
  • Noise - 5% 3.0

Our Verdict

The Milwaukee M12 Fuel is a fantastic impact driver and was the obvious choice to win an Editors' Choice award for the best 12-volt model. We love the size of the tool — it's one of the smallest impact drivers on the market. It's also a very simple and straightforward tool to use, plus it has several settings to dial in the ideal torque for the task at hand. We should note that the M12 is very loud, especially considering its voltage. Our article on the best impact drivers will show you how it fares versus competing products.
REASONS TO BUY
Convenient
Compact
Several settings
REASONS TO AVOID
Pricey
Battery doesn't last long
Loud

Compare to Similar Products


Awards Editors' Choice Award
Best 12 Volt Impact Driver
Editors' Choice Award
Best Tool-Only Impact Driver

Price $120 List
$99.99 at Amazon
$135 List
$118.00 at Amazon
$129 List
$92.90 at Amazon
$140 List
$103.49 at Amazon
$120 List
$80.03 at Amazon
Overall Score Sort Icon
60
82
80
71
59
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line When it comes to 12-volt impact drivers, it's hard to beat the performance of this modelThis impact driver offers fantastic speed and torque in a compact packageIf you want a high performance impact driver that can hang with the best, this is a good choiceA solid addition for those that already have a bevy of DEWALT tools, but carries a heftier price tag than mostWe found the ATOMIC to be a fairly uninspiring impact with a lack of noteworthy results in our tests
Rating Categories Milwaukee M12 Fuel... Milwaukee M18 Fuel... Makita XDT13 DeWalt MAX XR DCF887B DeWalt DCF809B Atomic
Speed (35%)
7.0
9.0
9.0
8.0
6.0
Torque (25%)
6.0
10.0
10.0
8.0
7.0
Convenience (20%)
7.0
8.0
6.0
7.0
6.0
Battery (15%)
3.6
5.7
6.6
5.1
3.7
Noise (5%)
3.0
2.0
3.0
2.0
5.0
Specs Milwaukee M12 Fuel... Milwaukee M18 Fuel... Makita XDT13 DeWalt MAX XR DCF887B DeWalt DCF809B Atomic
Average Measured Total Time for Lag Bolt Test 37 seconds 16 seconds 21 seconds 23 seconds 32 seconds
Average Measured Time: Plywood Ledger Screw Test 6 seconds 3 seconds 4 seconds 4 seconds 6 seconds
Average Measured Fastening Torque 143 ft-lb 300 ft-lb 282 ft-lb 238 ft-lb 215 ft-lb
Average Measured Breaking Torque 275 ft-lb 300 ft-lb 300 ft-lb 300 ft-lb 300 ft-lb
Average Measured Time: 3-2'x12' Ledger Screw Test 3.7 seconds 2.0 seconds 2.8 seconds 2.8 seconds 5.4 seconds
Battery Test Screws Driven 44 68 78 62 46
Measured Length 132 mm 116 mm 126 mm 136 mm 130 mm
Average Measured Decibels While Using 97 dBa 99 dBa 97 dBa 100 dBa 92 dBa
Impact Driver Model # 2553-20 2853-20 XDT13 DCF887 DCF809
Quick Bit Insert Yes Yes Yes Yes Yes
Bit Holder No Yes No No No
Multiple Fastening Modes Yes Yes No Yes No

Our Analysis and Test Results

After putting this impact driver through the TechGearLab tried and true tests, it was obvious that this model stood out as one of the best. It held its own against much bigger, bulkier models with higher voltage batteries. One of our favorite features of the M12 Fuel is that the controls are located on top of the driver's body. This driver has several settings, and because of the positioning, they are very easy to select.

Performance Comparison


milwaukee m12 fuel 2553-20 - the milwaukee m12 fuel easily stole the show as our favorite 12-volt...
The Milwaukee M12 Fuel easily stole the show as our favorite 12-volt impact driver.
Credit: Laura Casner

Speed


For the first part of our speed testing, we timed how long each model took to drive a 3-⅝" ledger screw, then repeated the process four times to calculate an average. The M12 Fuel was nothing special when compared to the fastest models, but when comparing results to other 12-volt models, it was in a league of its own.


With an average ledger screw drive time of 6 seconds, this model was nearly twice as fast as the other 12-volt models in our review.

milwaukee m12 fuel 2553-20 - the m12 fuel is one of the fastest 12-volt models that we've tested.

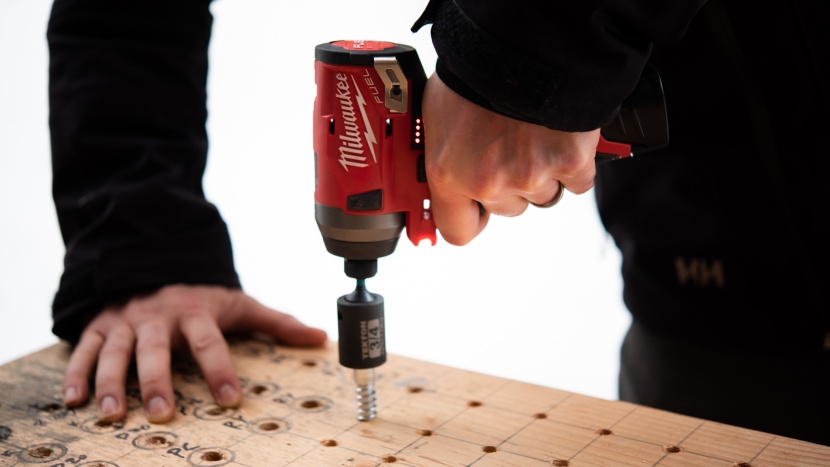

The M12 FUEL is one of the fastest 12-volt models that we've tested.
Credit: Laura Casner

For the second part of the speed test, we timed how long each model took to drive a ½" by 3" lag bolt and then how long it took to back the fastener out. The Milwaukee M12, again, outperformed the other 12-volt models — it drove the bolt in 26 seconds and loosened it in 11 seconds.

milwaukee m12 fuel 2553-20 - despite its diminutive size, the m12 fuel impressed us with its...

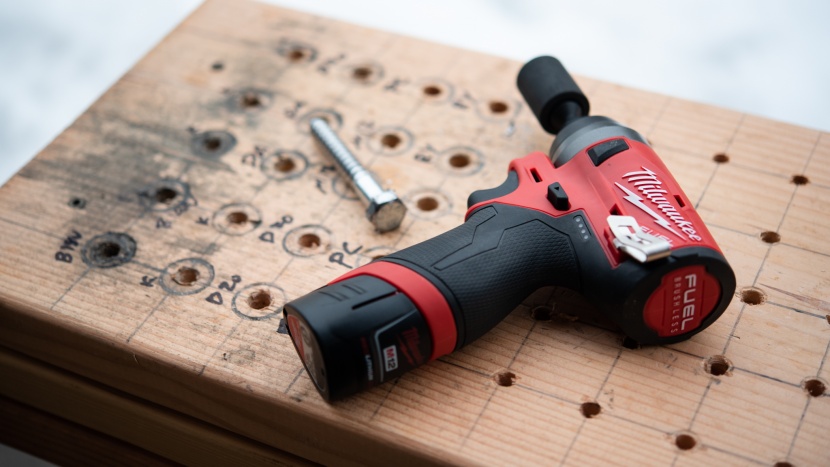

Despite its diminutive size, the M12 Fuel impressed us with its ability to drive lag bolts.
Credit: Laura Casner

Torque


To test torque, we welded some ½" grade 8 bolts to a steel I-beam so that we could see the maximum foot-pounds of pressure that each driver could deliver.


The Milwaukee M12 Fuel was able to tighten nuts to an average of 143 ft-lbs. For further testing, we used a torque wrench to tighten nuts onto the I-beam bolts to certain tightnesses to see how strong each model was at loosening.


The M12 Fuel was able to loosen a tightened nut to 275 ft-lbs, but it took 10 seconds to do so.

Convenience


Some elements in the convenience category are easy to measure, such as size and weight, while other features are more subjective and require real hands-on testing. Convenience was a strong metric for the M12 Fuel; we found it very easy to use.


One of the primary reasons to go with a 12-volt impact driver is they are more compact and lighter than models that use higher voltage batteries — the Milwaukee M12 is no exception.

milwaukee m12 fuel 2553-20 - 12-volt models are much more compact and lighter than their larger...

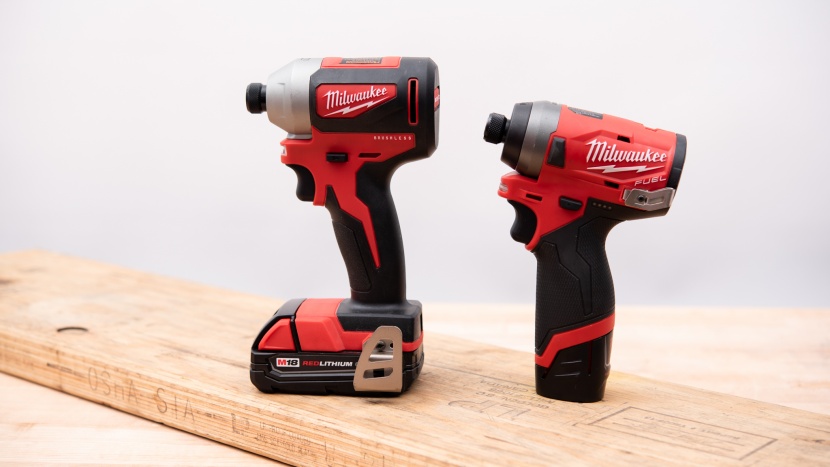

12-volt models are much more compact and lighter than their larger cousins.
Credit: Laura Casner

It only weighs 1.7 lbs without the battery, and it is a mere 132 mm long — these are fantastic traits for people that will be using the driver in awkward positions or tight places.


The M12 has a button for changing between four different settings. There are three RPM options and a “self-tapping” setting that helps reduce the possibility of stripping or breaking screws and overdriving. Having a variety of settings is great for people who are looking for an impact driver for finish carpentry or other applications that don't require a large amount of torque. The button to change between modes is conveniently located on the top of the tool body.

milwaukee m12 fuel 2553-20 - the m12 fuel belt clip holds the driver up vertically, almost every...
The M12 FUEL belt clip holds the driver up vertically, almost every other model holds the body upside down.
Credit: Laura Casner

The M12 comes equipped with a quick insert chuck that makes attaching bits a cinch even with one hand. It also has a belt clip that you can install on either side of the driver. The light on the Fuel is located right above the trigger and has a good amount of brightness. However, it has a strange shadow pattern due to the size and location of the light. The light stays on for 10 seconds but won't turn on unless the driver is activated.

milwaukee m12 fuel 2553-20 - we weren't thrilled with the light pattern produced by the m12.

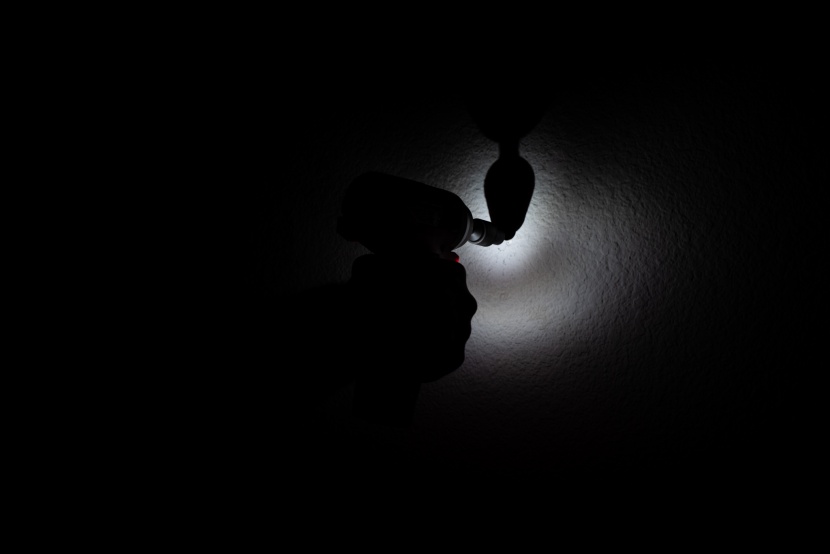

We weren't thrilled with the light pattern produced by the M12.
Credit: Laura Casner

Battery


To test battery life, we began by driving 14 ledger screws; then, we switched to a ½" by 3" lag bolt, where we drove the fastener into a pilot hole and removed it. We continued with this process over and over until the batteries ran out of energy. The Milwaukee M12 Fuel could completely drive and remove the lag bolt twice and drive 40 ledger screws before the battery was toast. This driver was easily the best performance we saw from a 12-volt model.


Noise


To measure noise we used a sound meter to take decibel readings while we drove a ledger screw, then repeated the process four times to calculate an average.


It produced an average of 97 dBa during our testing, which did not earn it a very good score for this metric. Regrettably, the M12 Fuel was far from quiet.


It's always a good idea to double-check with the manufacturer to see what type of personal protective equipment they suggest for the tool operator.

milwaukee m12 fuel 2553-20 - the milwaukee m12 fuel has 4 rpm settings.
The Milwaukee M12 FUEL has 4 RPM settings.
Credit: Laura Casner

Should You Buy the Milwaukee M12 Fuel?


When it comes to 12-volt models, the M12 Fuel is the strongest, fastest, longest-lasting impact driver we've used. It can be a bit pricey, but like other Milwaukee drivers, if you already own an M12 battery and charger, the price tag is easier to swallow. This is our top choice for a high-performance impact driver in a compact, 12-volt package.

What Other Impact Drivers Should You Consider?


The Milwaukee M12 Fuel seems expensive, especially considering its limitations as a 12-volt impact driver. If you need the power, it is worth your while and extra expense to upgrade to the Milwaukee M18 Fuel.

Ross Patton and Austin Palmer
