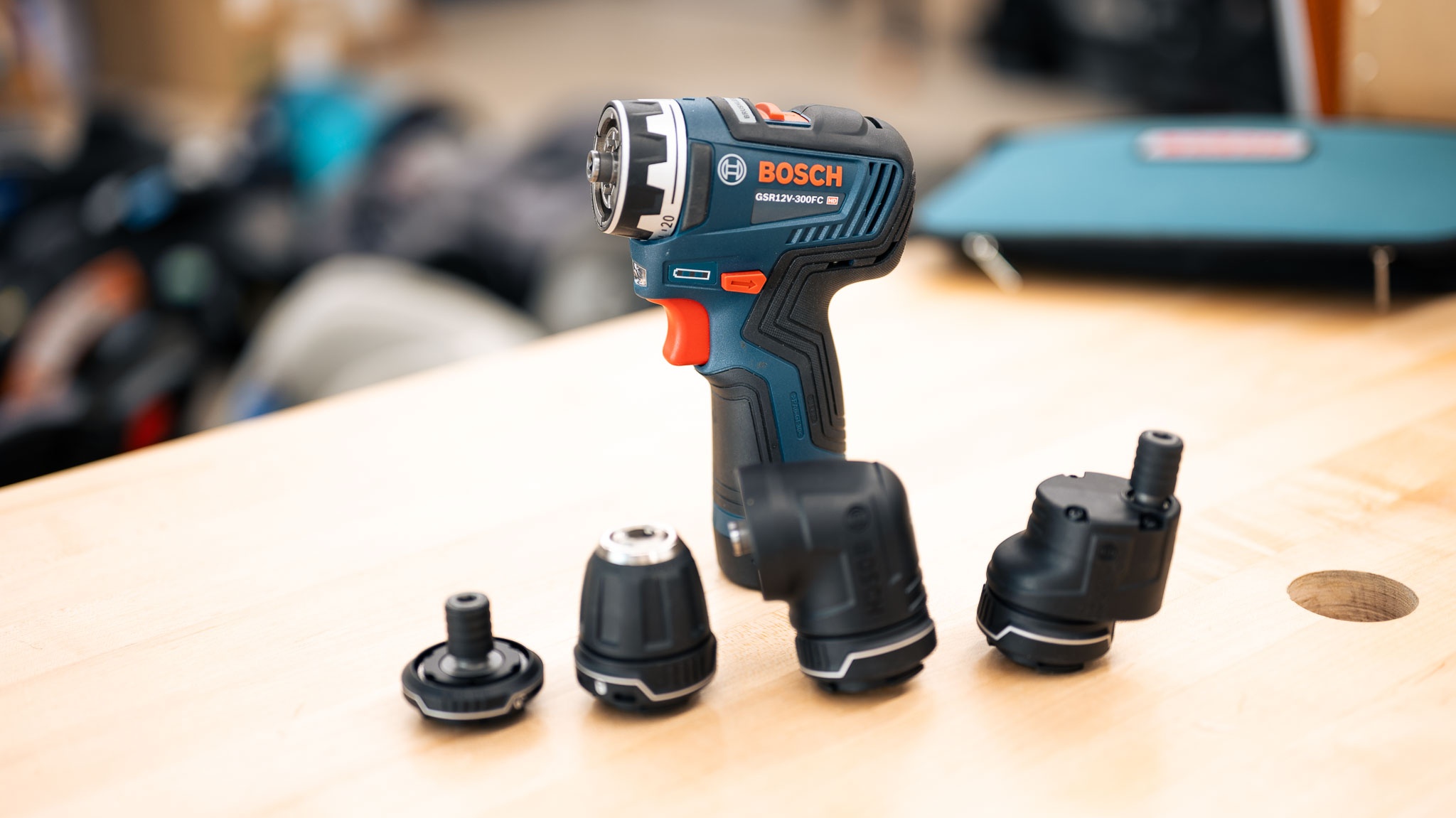

Bosch 12V Flexiclick 5-in-1 Drill Driver System GSR12V-300FCB22 Review

A solid 5-in-1 that will get most reasonable DIY jobs done, but still a little pricey
gearlab tested logo
Bosch 12V Flexiclick 5-in-1 Drill Driver System GSR12V-300FCB22 Review
Credit: BOSCH
Price:  $229 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   BOSCH
By Austin Palmer and Benjamin Hickok  ⋅  Sep 7, 2023
52
OVERALL
SCORE


RANKED
#16 of 23
  • Drilling - 35% 5.8
  • Driving - 35% 4.8
  • Battery Life - 20% 3.6
  • Convenience - 10% 7.6

Our Verdict

The Bosch 12V Flexiclick 5-In-1 Drill is an expensive 12 volt tool, that surprisingly failed to perform as well compared to less expensive drills. While there are better options in the compact 12 volt and convenient focused 5-in-1 drill driver segment of the tool industry, this model will get most of your at home drill driving tasks done without issues. Two batteries, good battery life, and reasonably fast charging times, will also keep you knocking out projects without interruption. To find the right drill for you, check out our best drill review.
REASONS TO BUY
Lightweight
Compact
Swappable heads
Included bits and bit holder
Quick lock for offset chuck
REASONS TO AVOID
So-so lighting
3/8" chuck
Battery tabs can be difficult to push in

Compare to Similar Products


Awards  Editors' Choice Award
Best Tool Only Drill
Editors' Choice Award
Best Drill Kit Overall
Best Buy Award
Best Bang for Your Buck
Best Buy Award
Best 12 Volt Option a Budget
Price $229 List
$219.99 at Amazon
$189 List
$168.00 at Amazon
$169 List
$105.00 at Amazon
$79 List
$59.00 at Amazon
$139 List
Check Price at Amazon
Overall Score Sort Icon
52
94
89
60
48
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line A versatile 5-in-1 tool suitable for most DIY tasks, although somewhat costlyThis tool delivered excellent results across the board and is a fantastic option to complement the M18 battery systemA drill driver set capable of a wide range of tasksA great budget drill for a homeowners or DIYer and has more than enough power for moderate to light-duty tasksOur favorite compact 12-volt drill when considering overall performance and price
Rating Categories Bosch 12V Flexiclic... Milwaukee M18 Fuel... Kobalt XTR 24-volt... Craftsman V20 1/2-I... Bosch 12V Max Drill...
Drilling (35%)
5.8
9.6
9.4
6.6
5.8
Driving (35%)
4.8
10.0
9.4
6.2
4.5
Battery Life (20%)
3.6
9.8
8.4
4.4
3.2
Convenience (10%)
7.6
6.2
6.2
6.0
5.8
Specs Bosch 12V Flexiclic... Milwaukee M18 Fuel... Kobalt XTR 24-volt... Craftsman V20 1/2-I... Bosch 12V Max Drill...
Five Inch Hole Saw Test 95 seconds 15 seconds 17 seconds 55 seconds 70 seconds
Lag Screw Test 3.87 in 5.00 in 5.00 in 4.37 in 3.87 in
Manufacturer Peak Torque 300 in-lbs 1,200 in-lbs 1,200 in-lbs 280 in-lbs 256 in-lbs
Measured Charge Time 65 min 25 min 85 min 58 min 85 min
Measured Weight 1.65 lbs 4.06 lbs 4.09 lbs 3.44 lbs 2.17 lbs
Measured Length 6.25 in 7 in 7 in 8.25 in 6.625 in
Measured Number of Settings 20 14 22 23 20
Manufacturer Stated RPM Low: 0 - 460
High: 0 - 1750
Low: 0 - 550
High: 0 - 2000
Low: 0 - 550
High: 0 - 2000
Low: 0 - 450
High: 0 - 1500
Low: 0 - 350
High: 0 -1300
Included Battery Pack(s) 2.0 Ah Tested with 2.0 Ah 4 Ah
Tested with 2.0 Ah (not included with kit)
1.3 Ah 2.0 Ah
Max Chuck 3/8 in 1/2 in 1/2 in 1/2 in 3/8 in
Battery Voltage 12V 18V 24V 20V 12V
Drill Model Tested GSR12V-300FC 2803-20 KXDD 124B-03 CMCD700 PS31
Box Model (Kit) Tested GSR12V-300FCB22 Tested tool-only, no kit KXDD 1424A-03 CMCD700C1 PS31-2A
Battery Indicator Location Drill Battery Battery Battery Drill
LED Location Above the trigger Above the battery Above the battery Above the trigger Above the trigger
Included Belt Clip Yes Yes Yes No No

Our Analysis and Test Results

Performance Comparison


bosch 12v flexiclick 5-in-1 drill driver system gsr12v-300fcb22 - compact and convenient, but a little pricey for the level of...
Compact and convenient, but a little pricey for the level of performance.
Credit: Abriah Wofford

Drilling


Our first and most critical evaluation criterion for rating each drill is the drilling metric, contributing to 35 percent of each drill's overall score. This metric is divided into three real-world test scenarios. The first test in our drilling metric measures how fast each drill could bore a 5-inch hole in a 1 ¾ inch wooden door using a hole saw. The second test recorded the drilling speed for a 1-inch hole in a 2x12 using a spade bit. Lastly, we conducted tests involving the drilling of a 16-gauge steel sheet using both ¼" and ½" spiral drill bits.

The BOSCH 12V Flexiclick 5-In-1 Drill offered its worst performances compared to other 12 volt 5-in-1 models in these tests, requiring an unimpressive 95 seconds to bore a 5 inch hole in a door, struggling in a high speed setting from the get go using a one inch spade bit, and posting some of the longer times to drill ¼ inch and ½ inch holes in steel. While this model satisfactorily completed each task, we expected more, and were surprised that it was easily outshone by a significantly cheaper model.

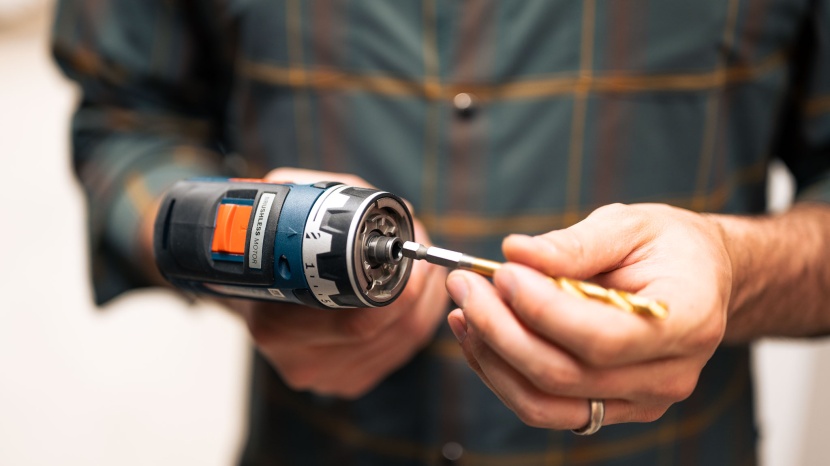

bosch 12v flexiclick 5-in-1 drill driver system gsr12v-300fcb22 - changing drill bits with a hex shank is fast and easy.
Changing drill bits with a hex shank is fast and easy.
Credit: Abriah Wofford

Driving


Our second major metric, also worth 35 percent of each model's overall score, focuses on evaluating their driving capabilities. In this test, we used each drill driver to drive five-inch lag bolts through an untreated 2x4 stacked on top of an untreated 4x4. The BOSCH 12V Flexiclick 5-In-1 performed in the middle of the 12v 5-in-1 models we tested, tapping out with one and one eighth inches of exposed bolt shank and threads, a quarter of an inch longer than the best performing model.

Driving deck screws with a compact 12 volt model.
Credit: Abriah Wofford

Furthermore, our team used the drills to fasten 3-inch number 9 Torx T25 flat head deck screws into the same material, and assess their capability to drive screws flush with the wood's surface. The BOSCH 12V Flexiclick 5-in-1 offered reasonable performance from a 12 volt, but never succeeded in driving and setting screws perfectly flush with the wood surface.

Driving a lag bolt with the BOSCH 12V Flexiclick 5-in-1 Drill Driver.
Credit: Abriah Wofford

Battery Life


Our battery life metric, accounting for 20 percent to the overall score of each drill, focuses on battery endurance. In order to test the life of each battery, the drills each drove 16 Torx T25 flat head 9x3 deck screws into stacked 2x12 lumber, and drilled three 1-inch holes using a spade bit. We repeated this test as rounds, until the battery was exhausted. The 2 amp hour battery of the BOSCH 12V Flexiclick 5-In-1 Drill lasted nearly 4 complete rounds, rivaling the performance of the top 12 volt 5-in-1. However, the charging time for the battery is over an hour, 10 minutes longer than the top model. Fortunately, Bosch includes two batteries in this kit, unlike the top performing DeWalt, meaning you are unlikely to experience interruptions completing projects.

Battery tabs are relatively easy to operate on this 12-volt model.
Credit: Abriah Wofford

Convenience


Our final test metric evaluated the 'convenience' aspect of each model, comprising 10 percent of each drill's final score. Changing angle heads, the availability of tool belt clips and bit holders, the presence of work lights, the user-friendliness of chucks, settings, and triggers, as well as the compactness and the ease of changing the battery all factored into our convenience metric. The he BOSCH 12V Flexiclick 5-In-1 Drill proved to be a convenient model, including a nice bit holder and four bits. We generally like this model, but would have liked for the keyless chuck to offer the tactile ratcheting clicks like many other models incorporate, as it is easier to ensure a secure bit with the more audible and haptic sensation.

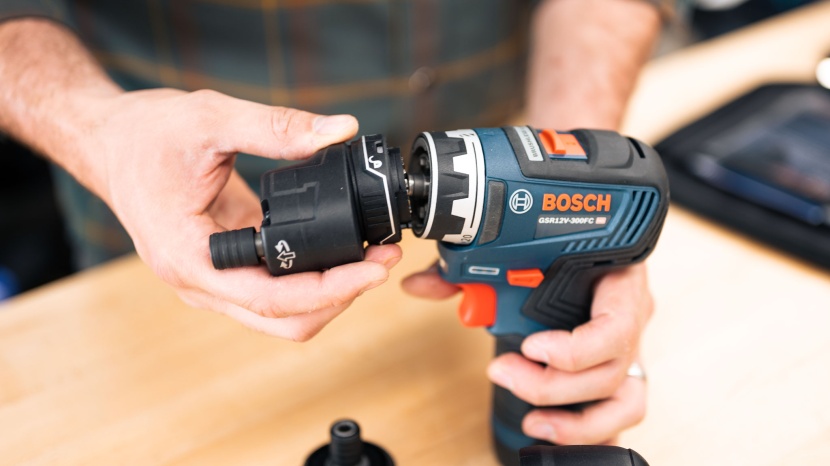

bosch 12v flexiclick 5-in-1 drill driver system gsr12v-300fcb22 - multiple angle changing attachments are relatively easy to change.
Multiple angle changing attachments are relatively easy to change.
Credit: Abriah Wofford

Should You Buy the BOSCH 12V Flexiclick 5-In-1 Drill?


The BOSCH 12V Flexiclick 5-In-1 Drill is a somewhat expensive 12 volt tool, that to our test team's surprise, failed to perform as well as more affordable models. With better options in the compact 12 volt and convenience focused 5-in-1 space, and better performing models of bigger sizes and voltages, we can't recommend the BOSCH 12V Flexiclick.

What Other Drill Should You Consider?


The BOSCH 12V Flexiclick 5-In-1 Drill is a fairly average 12 volt drill driver. So if you are looking for the top-performing 5-in-1 12-volt drill, the Dewalt Xtreme 12V 5-In-1 is our top recommendation. For more power and performance overall, consider the Milwaukee M18 Fuel 1/2 Drill Driver. It offers the best overall performance among all of the models we have tested, although you'll trade off the compactness present only in 12 volt 5-in-1 models. If you're looking for a more budget friendly model, the Craftsman V20 1/2-In. Drill/Driver provides good performance at a more affordable price. However, for the tightest of budgets, the Black+Decker 20V Max Drill/Driver is a good option, providing the DIYer or hobbyist, with enough bang for the buck to handle most DIY tasks.
